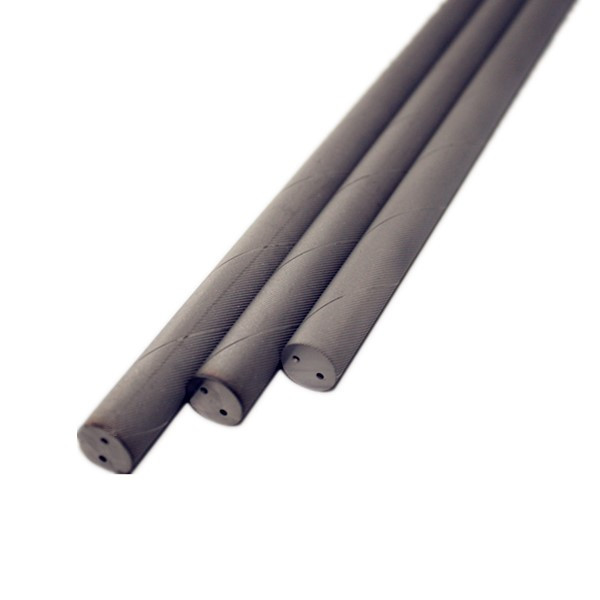

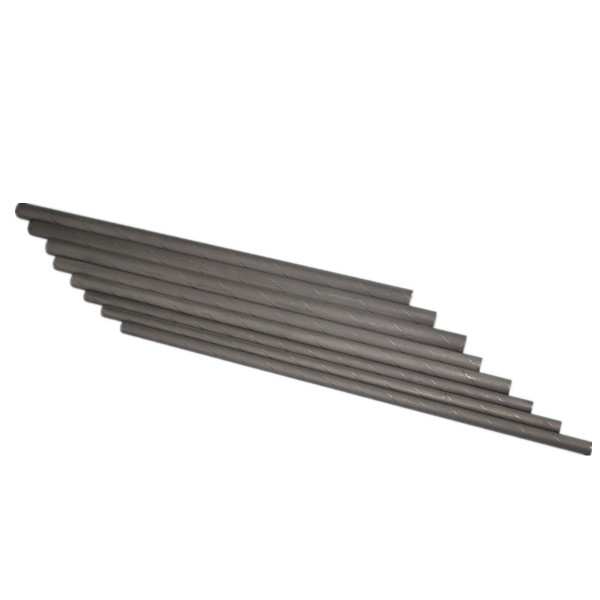

Tungsten carbide rods with helical coolant holes

High-end tungsten carbide rods with 2 helical coolant holes

Tungsten carbide rods with helical coolant holes.

Diameter from 2 mm to 50 mm.

Length from 10 mm to 330 mm.

Tolerance: h5 and h6.

  1. Raw material selection: High quality tungsten carbide powder is preferred. 100% virgin material.
  2. Imported German PVA sintering furnace. HIP sintering. Which can keep tungsten carbide rods in high density, High wear resistance, high-performance.
  3. Professional engineers and quality inspection teams ensure product process inspection and acceptance inspection to ensure stable product quality and prevent unqualified products from being shipped.
  4. More than 40 years of manufacturing experience.
  5. The tungsten carbide rods performance and service life are close to 90-97% of Guhringg, Boehleritt and Kennametall.
Category:
Tungsten carbide rods with helical coolant holes grade:
     Grade       ISO Grade  WC
(%)		    Co
  (%)		 Grain Size
      (μm)		 Hardness
（HRA）		    Density
  （g/cm³）		     TRS
   （N/mm²）
BU06 K05-K10 94 6 0.5 94    14.75        3600
YG10X K20 – K30 90 10 0.8 91.5 14.35       3600
BT15 K20 – K30 90 10 0.7 92.2 14.35       3900
BT20 K20 – K30 90 10 0.6 92.3 14.4     4000
BT25 K30 – K40 88 12 0.6 92.5 14.1      4000
BT25UF K30 – K40 88 12 0.4 92.8 14.05     4200

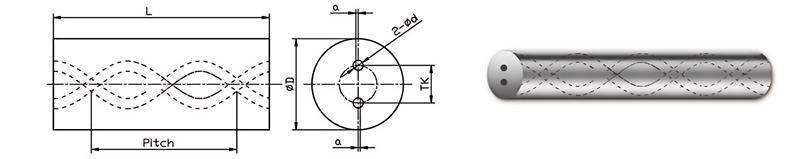

Tungsten carbide rods with helical coolant hole sizes:



Helical carbide rods sizes

Type D L
(Tol./0,+4)		 d TK a Pitch
φ(mm) Tol(mm) d(mm) Tol(mm) TK(mm) Tol(mm) P(mm) Tol(mm)
Bφ6×2φ0.7×2.6x330H30° 6 +0.7,+1.3 330 0.70 ±0.10 2.60 0,-0.4 0.15 32.65 +0.67,-0.65
Bφ7×2φ1.0×3.7x330H30° 7 +0.7,+1.3  330 1.00 ±0.15 3.70 0,-0.4 0.15 38.09 +0.78,-0.76
Bφ8×2φ1.0×4.0x330H30° 8 +0.7,+1.3  330 1.00 ±0.15 4.00 0,-0.4 0.15 43.53 +0.89,-0.86
Bφ9×2φ1.4×4.8x330H30° 9 +0.7,+1.3 330 1.40 ±0.15 4.80 0,-0.6 0.20 48.97 +1.00,-0.97
Bφ10×2φ1.4×4.8x330H30° 10 +0.7,+1.3 330 1.40 ±0.15 4.80 0,-0.6 0.20 54.41 +1.11.-1.08
Bφ11×2φ1.4×5.3x330H30° 11 +0.7,+1.4  330 1.40 ±0.15 5.30 0,-0.8 0.30 59.86 +1.22,-1.19
Bφ12×2φ1.4×6.25x330H30° 12 +0.7,+1.4 330 1.40 ±0.15 6.25 0,-0.8 0.30 65.3 +1.34,-1.30
Bφ13×2φ1.75×6.5x330H30° 13 +0.7,+1.4 330 1.75 ±0.20 6.50 0,-0.8 0.37 70.74 +1.45,-1.40
Bφ14×2φ1.75×7.1x330H30° 14 +0.7,+1.5  330 1.75 ±0.20 7.10 0,-0.8 0.40 76.18 +1.56,-1.51
Bφ15×2φ1.75×7.7x330H30° 15 +0.7,+1.5  330 1.75 ±0.20 7.70 0,-0.8 0.40 81.62 +1.67,-1.62
Bφ16×2φ1.75×8.3x330H30° 16 +0.7,+1.6  330 1.75 ±0.20 8.30 0,-0.8 0.40 87.06 +1.78,-1.83
Bφ17×2φ1.75×8.9x330H30° 17 +0.7,+1.6  330 1.75 ±0.20 8.90 0,-0.8 0.45 92.5 +1.89,-1.84
Bφ18×2φ2.3x955x330H30° 18 +0.7,+1.7  330 2.30 ±0.25 9.55 0,-0.8 0.50 97.95 +2.00,-1.94
Bφ19×2φ2.3×10.1x330H30° 19 +0.7,+1.7 330 2.30 ±0.25 10.10 0,-0.8 0.50 103.39 +2.12-2.05
Bφ20×2φ2.5×10.4x330H30° 20 +0.7,+1.7 330 2.50 ±0.25 10.40 0,-10 0.50 108.83 +2.23.-2.16
New sizes for your reference:
Φ4*330-Φ0.4*1-30° Φ4*330-Φ0.4*1-40°
φ6*330*2φ0.7*2.6-30° φ6*330*2φ0.7*2.6-40°
φ8*330*2φ1.0*4.0-30° φ8*330*2φ1.0*4.0-40°
φ10*330*2φ1.4*4.8-30° φ10*330*2φ1.4*4.8-40°
φ12*330*2φ1.4*6.25-30° φ12*330*2φ1.4*6.25-40°
φ14*330*2φ1.75*7.1-30° φ14*330*2φ1.75*7.1-40°
φ16*330*2φ1.75*8.3-30° φ16*330*2φ1.75*8.3-40°
φ18*330*2φ2.0*9.55-30° φ18*330*2φ2.0*9.55-40°
φ20*330*2φ2.0*10.4-30° φ20*330*2φ2.0*10.4-40°
Φ21*330-Φ2*10.5-30° Φ21*330-Φ2*10.5-40°
Φ22*330-Φ2*11.1-30° Φ22*330-Φ2*11.1-40°
Φ23*330-Φ2*11.7-30° Φ23*330-Φ2*11.7-40°
Φ24*330-Φ2*12.3-30° Φ24*330-Φ2*12.3-40°
Φ25*330-Φ2.5*12.3-30° Φ25*330-Φ2.5*12.3-40°
Φ26*330-Φ2*13.3-30° Φ26*330-Φ2*13.3-40°
Φ28*330-Φ2.5*14.2-30° Φ28*330-Φ2.5*14.2-40°
Φ30*330-Φ2.5*15.4-30° Φ30*330-Φ2.5*15.4-40°
Φ32*330-Φ3*16.6-30° Φ32*330-Φ3*16.6-40°

Please send us inquiries for quotations and free samples for testing:
