The tungsten carbide saw tips grades:
| Grades of fine grain | ||||
| Grade | Density | T.R.S | Hardness | Performance &application recommended. |
| G/CM3 | MPa | HRA | ||
| YG6X | 14.7 | 1900 | 92.5 | Hard wood, MDF, HDF, aluminum & plastic composites and thin non-ferrous metals. |
| YG8A | 14.5 | 2200 | 91 | Hard wood, veneer board, PCB, PVC & metals. |
| YG8X | 14.4 | 2420 | 92 | Carbon steel, refractory steel, manganese steel, and stainless steel. |
| YG2T | 14.7 | 2000 | 91.2 | General and hard wood. |
| YG10X | 14.5 | 3600 | 91.5 | Hard wood, wood-based panels, chilled cast iron, fiberglass, aluminum, copper. |
| YG10T | 14.9 | 1890 | 91.5 | General and hard wood. |
| Grades of medium and coarse grain | ||||
| YG6 | 14.9 | 2100 | 90 | Hard wood, original wood, aluminum section bar, brass rod and cast iron. |
| YG8 | 14.7 | 2400 | 89.5 | Dry wood, soft wood, aluminum and brass, graphite and grass. |
| YG8C | 14.7 | 2450 | 88.5 | Soft and dry wood, general wood with loose knot, man-made marble, ceramics and grass. |
| YG9C | 14.4 | 2600 | 87 | For debarking and cutting of frozen wood, soft wood and original wood. |
| YG11C | 14.1 | 2200 | 90.5 | Hard wood, non-ferrous metal, granite and marble. |
| YG15C | 14 | 2700 | 86.5 | For debarking and cutting of frozen wood, soft wood and original wood. |

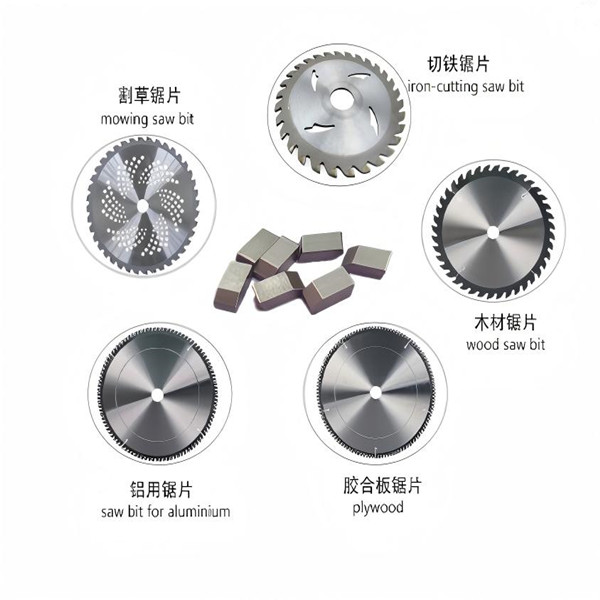

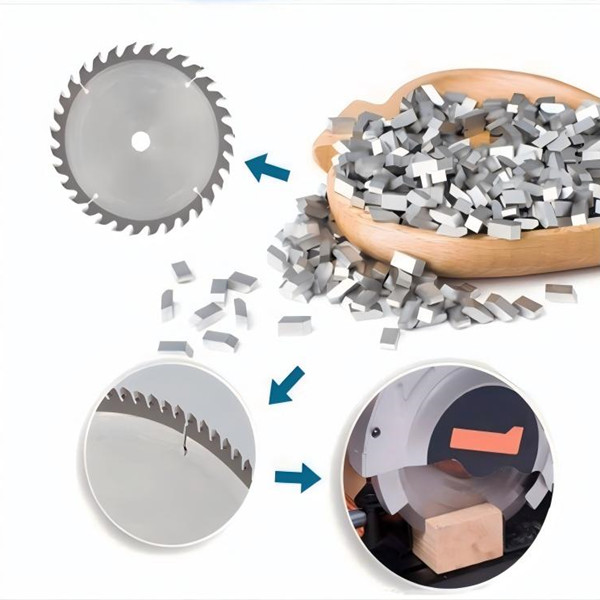

Tungsten carbide saw tips applications:
Tungsten carbide saw tips details:
FAQ for tungsten carbide saw tips:
Q1: What are tungsten carbide saw tips?
A: Tungsten carbide saw tips are WC-Co hard alloy cutting inserts brazed on circular saw blades. They feature high hardness and wear resistance for cutting wood, MDF, plywood, aluminum, copper, plastic, composite panels, mild steel and thin stainless steel tubes.
Q2: What is the hardness of tungsten carbide saw tips?
A: The hardness of carbide saw tips typically ranges from 87 HRA to 93 HRA, depending on cobalt content, grain size, and application requirements.
Q3: Can tungsten carbide saw tips be customized?
A: Yes. As a professional manufacturer of carbide saw tips, we offer the following customized services:
(1) Custom dimensions.
(2) Special tooth geometries.
(3) Various chamfer designs.
(4) Customized carbide grades.
(5) OEM tungsten carbide tips and ODM tungsten carbide tips production services.
We produce custom tungsten carbide saw tips based on customer drawings. Send us your drawings to get quotes and samples.
Q4: Which grade for wood cutting?
A: Clean soft wood, veneer, MDF: YG6X; Hardwood, lumber with nails & sand: YG8.
Q5: Which grade for aluminum, copper, acrylic cutting?
A: YG10X extra-fine grain with polished edges, which greatly reduces aluminum adhesion and delivers burr-free mirror cutting surface.
Q6: What sizes of carbide saw tips are available?
A: (1) Thickness: 1.0 mm to 10 mm.
(2) Width: 2 mm to 25 mm.
(3) Length: 5 mm to 50 mm.
Q7: What is your minimum order quantity?
A: Standard stock carbide saw tips: MOQ 1 kg.
Custom non-standard carbide saw tips: MOQ 5–10 kgs.
Q8: What are the lead times for stock and customized orders?
A: In-stock standard carbide saw tips: 2–3 working days lead time.
Custom finished carbide saw tips: 10–25 working days lead time.
Please send us inquiries for quotations and free samples for testing:
