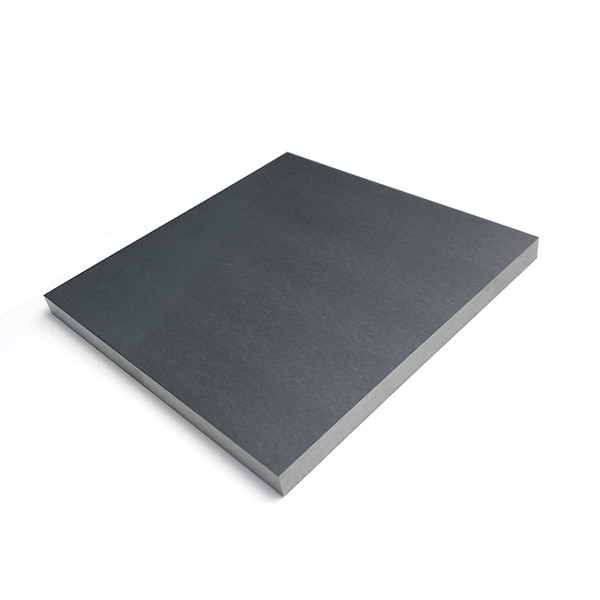

Wolfram carbide EDM blocks

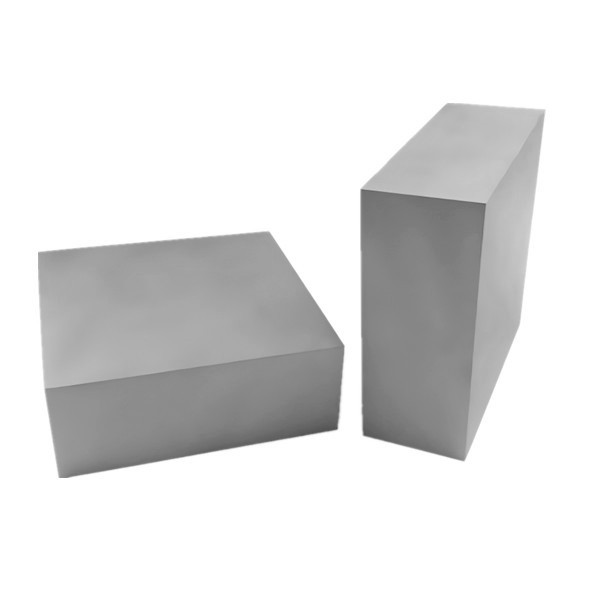

Tungsten carbide EDM blocks
Carbide EDM blocks

Wolfram carbide EDM blocks for stamping molds and stamping dies

  1. Raw material selection: High quality tungsten carbide powder is preferred. 100% virgin material.
  2. Imported German PVA sintering furnace. HIP sintering. Which can keep wolfram carbide edm blocks in high density, High wear resistance, excellent resists electrochemical corrosion high-performance.
  3. Professional engineers and quality inspection teams ensure product process inspection and acceptance inspection to ensure stable product quality and prevent unqualified products from being shipped.
  4. More than 40 years of manufacturing experience.
  5. The wolfram carbide edm blocks performance and service life are close to 90-97% of Guhringg, Ceratizitt, Boehleritt and Kennametall.
  6.  Wolfram carbide edm blocks are suitable for Impacting punches, Coining dies, Forming dies, Can die punches, Swaging dies, Cold forming, Back extrusion punches & dies, high-impact extrusion dies.
Category:
Wolfram carbide EDM blocks grades:
Grade Composition (%) Density (g/cm3) Hardness (HRA) T.R.S (N/mm²)
YG6A 6%co 94%wc 14.85 ≥92.5 ≥2000
YG8 8%co 92%wc 14.7 ≥89.8 ≥2800
YG10X 10%co 90%wc 14.35 ≥91.5 ≥3600
YG11 11%co 89%wc 14.4 ≥88.5 ≥2900
YG15 15%co 85%wc 14 ≥87.0 ≥3000
YG20 20%co 80%wc 13.5 ≥85.5 ≥2800
YG13X 13%co 87%wc 14.2 ≥90.0 ≥3200
BT15 10%co 90%wc 14.35 ≥92.2 ≥3900
YG6A Fine grain alloy, good wear resistance. It is suitable for manufacturing forming cutter, wear-resistant parts etc.
YG8

High bending strength, wear resistance lower than YG6A, suitable for manufacturing forming cutter, wear-resistanparts etc.
YG11
YG15 Suitable for manufacturing punching dies, wear-resistant parts etc.
YG20

High bending strength, suitable for manufacturing progressive dies and other punching dies.
YG13X
BT15 Somb-fine grain size, High performance, making cutting tools, suitable for cutting ordinary alloy steel, aluminum alloy, heat resistant alloy, cast iron, etc.

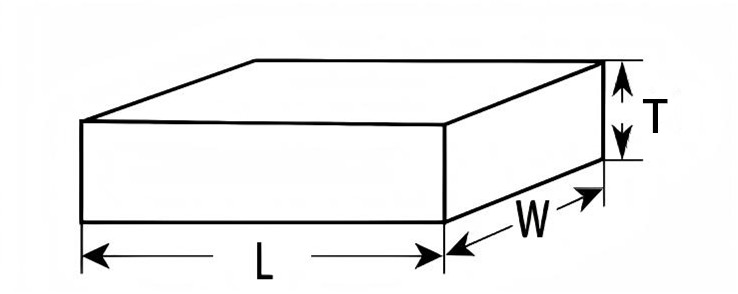

Wolfram carbide EDM blocks sizes:
Tungsten carbide EDM blocks sizes
Length
(mm)
(L)		 Tolerance Width
(mm)
(W)		 Tolerance Thickness
(mm)
(T)		 Tolerance
100 +2.0/0 100 +2.0/0 1.0-70.0 +0.5/+0.2
105 +2.0/0 105 +2.0/0 1.0-70.0 +0.6/+0.2
110 +2.0/0 110 +2.0/0 1.0-70.0 +0.8/+0.2
120 +2.0/0 120 +2.0/0 1.0-70.0 +1.0/+0.2
135 +2.0/0 135 +2.0/0 1.0-70.0 +1.2/+0.2
150 +2.5/0 150 +2.5/0 1.0-70.0 +1.2/+0.2
200 +2.5/0 200 +2.5/0 3.0-70.0 +1.2/+0.2
250 +5.0/0 250 +5.0/0 15.0-60.0 +1.2/+0.2
300 +7.0/0 300 +7.0/0 20.0-60.0 +1.2/+0.2

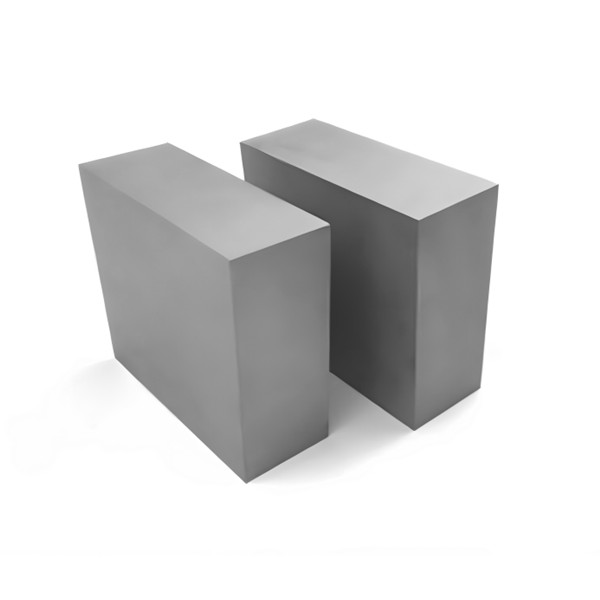

Carbide EDM blocks details:

Carbide EDM blocks

EDM blocks



Please send us inquiries for quotations and free samples for testing:
