High quality tungsten carbide buttons for DTH hammers level 1

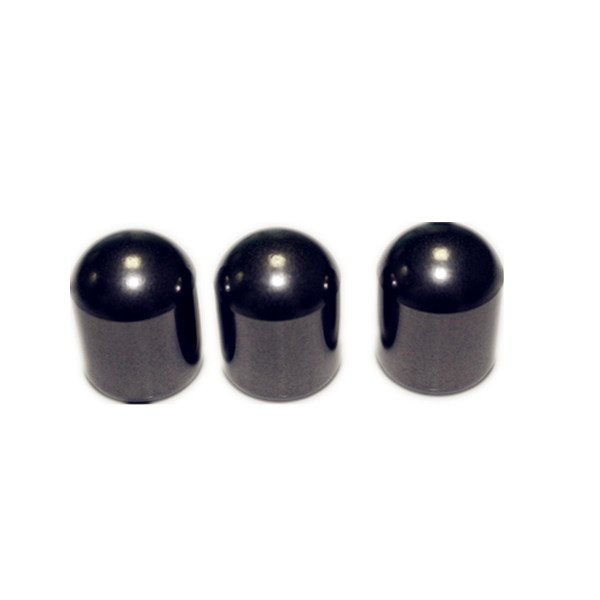

Tungsten carbide buttons.

Diameter: As per your drawings.

Length: As per your drawings.

Tolerance: Ground and polished h5 and h6.

Raw material selection: High quality tungsten carbide powder is preferred. 100% virgin material.
Imported German PVA sintering furnace. HIP sintering. Which can keep tungsten carbide buttons in high density, High wear resistance, high-performance.
Professional engineers and quality inspection teams ensure product process inspection and acceptance inspection to ensure stable product quality and prevent unqualified products from being shipped.
More than 40 years of manufacturing experience.
The tungsten carbide buttons performance and service life are close to 90-97% of Guhring, Ceratizit, Boehlerit and Kennametal.

Tungsten carbide buttons grade:

Grade	Co(%)	Density (g/cm³)	Hardness (HRA)	TRS (N/mm²)	Recommended Use
BM06	6	14.95	90.3	2800	DTH Hammers, medium to hard rock
BM65	6.5	14.90	90.0	3000
BM08	8	14.8	88.7	3200
B510	10	14.55	88.1	3300	Roller cone drill bits
B411	11	14.45	88.8	3200
B512	12	14.35	87.3	3200
BCK1	10	14.50	85.7	2400	Road milling bits, mining
BCK3-S	6.5	14.85	87.5	2200	Road milling bits, mining
YH13	13	14.25	88.7	3500	PDC Substrate
YH16	16	13.90	86.6	3200	PDC Substrate

Carbide button sizes：

Type	Basic size(mm)
Type	diameter(ΦD)	height(H)	radius of sphere(SR)
BTQ08212ABT15	8.2	12	4.2
BTQ09213ABT17	9.2	13	4.6
BTQ10214BT20	10.2	14	5.2
BTQ11215BT21	11.2	15	6.0
BTQ12217BT18	12.2	17	6.6
BTQ13219BT20	13.2	19	6.7
BTQ14322BT10	14.3	22	7.2
BTQ16324ABT30	16.3	24	8.8
BTQ18327BT33	18.3	27	9.2
BTQ19225D20	19.2	25	9.6
BTQ202280EBT35	20.2	28	10.2
BTQ22230EBT35	22.2	30	11.2
