YG6 / YG8 Wolframkarbidkugel Hersteller mit hoher Qualität für industrielle Teile

Wolframkarbidkugel-güte:

Werkstoff/PCT%	YG6(x)	YG8	YG13	YG20	YN6	YN9	YN12
Wolfram Hartmetall	94%	92%	87%	80%	94%	91%	88%
CO	6%	8%	13%	20%
Ni					6%	9%	12%

Wolframkarbid-Kugelgrößen:

MM	INCH	MM	INCH	MM	INCH
0.5		5		11.113	7/16
0.6		5.159	13/64	12
0.794	1/32	5.5		12.303	31/64
0.8		5.953	15/64	12.7	1/2
1		6		13.494	17/32
1.588	1/16	6.35	1/4	14.288	9/16
2		6.5		15
2.381	3/32	6.747	17/64	16
2.5		7		16.669	21/32
2.778	7/64	7.144	9/32	18.256	23/32
3		7.5		19.844	25/32
3.175	1/8	7.938	5/16	20.638	13/16
3.5		8		22.225	7/8
3.969	5/32	8.5		28.575	11/8
4		9		30.162	13/16
4.5		9.525	3/8
4.763	3/16	10

Wir sind in der Lage, Wolframkarbidkugeln in den von Ihnen gewünschten Größen herzustellen.



Toleranz der Wolframkarbidkugel:

PRÄZISION Klasse	VARIATION	SPHERICAL	OBERFLÄCHE	TOLERANZ	LOS VARIATION
G3	0,0762μm	0,0762μm	0,0127μm	±0,762μm	0,127μm
	(0.000003″)	(0.000003″)	(0.0000005″)	(±0.0003″)	(0.000003 “)
G5	0,127μm	0,127μm	0,02μm	±1,27μm	0,254μm
	(0.000005″)	(0.000005")	(0.0000008″)	(±0.0005″)	(0.00001″)
G10	0,254μm	0,254μm	0,0254μm	±2,54μm	0,508μm
	(0. 00001″)	(0.00001″)	(0.000001″)	(±0.0001″)	(0.00002″)
G15	0,381μm	0,381μm	0,0254μm	±2,54μm	0,0762μm
	(0.000015″)	(0.000015″)	(0.000001″)	(±0.0001″)	(0.00003″)
G16	0,4064μm	0,4064μm	0,0254μm	±2,54μm	0,8128μm
	(0.000016″)	(0.000016″)	(0.000001″)	(±0.0001″)	(0.000032 “)
G24	0,6096μm	0,6096μm	0,0508μm	±2,54μm	1.2192μm
	(0.000024″)	(0.000024″)	(0.000002″)	(±0.00001″)	(0.000048″)
G25	0,635μm	0,635μm	0,0762μm	±2,54μm	1,27μm
	(0.000025″)	(0. 000025″)	(0.000003″)	(±0.0001″)	(0.00005″)
G48	1.2192μm	1.2192μm	0,0762μm	±0,508μm	2,4384μm
	(0.000048″)	(0.000048″)	(0.000003″)	(±0.0002″)	(0.000096″)
G50	1,27μm	1,27μm	0,0762μm	±7,62μm	2,54μm
	(0.00005")	(0.00005″)	(0.000003")	(±0.0003″)	(0.0001 “)

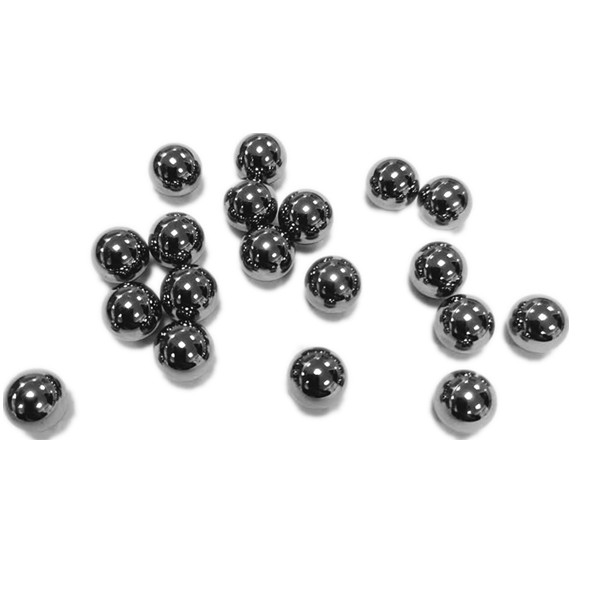

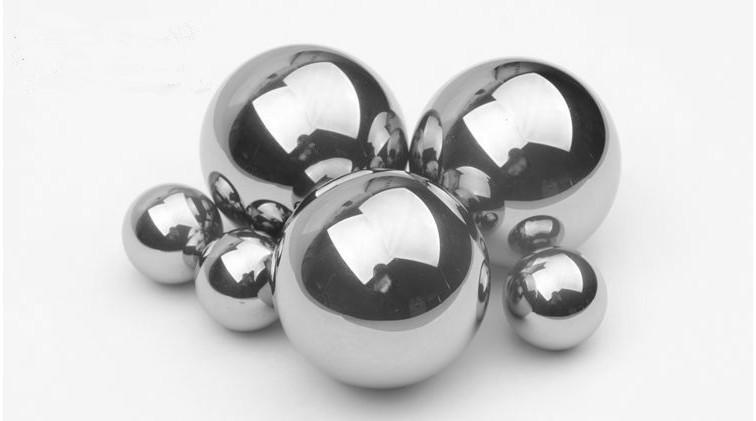

Carbide ball details:



Carbide ball application:

1. Critical bearings: Used in precision machinery operating at high speeds, under heavy loads, or in corrosive environments, such as advanced CNC machine tools and aerospace equipment.

2. Oil valves: Used in pumps used in oil drilling, they withstand immense pressure and abrasion from sand and gravel.

3. Chemical pumps and valves: Pumps and valves used to transport abrasive slurries or chemical liquids, and are much more durable than steel balls.

4. Pen tip beads: The small ball in the tip of a high-end ballpoint pen ensures smooth writing even after hundreds of thousands of words.

5. Precision measurement: Used as probes in precision measuring instruments, they are resistant to wear and maintain accuracy over time.

Bitte senden Sie uns Anfragen für Kostenvoranschläge und kostenlose Muster zum Testen:
